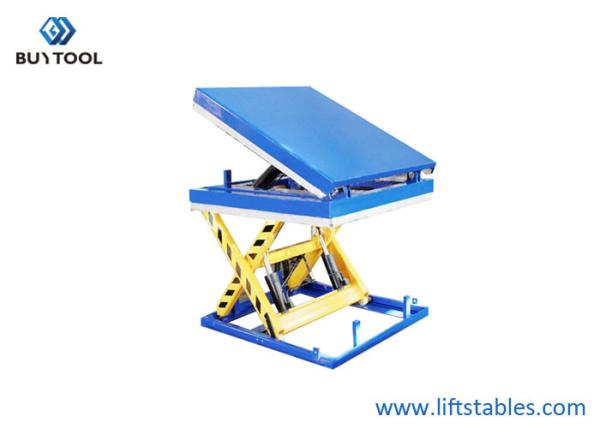

    1300x850mm Warehouse Stationary Lift Table With Tilt Cargo Lifting

    Ask Lasest Price
    Brand Name : Buytool
    Model Number : HW1000T
    Certification : CE,SGS,ISO9001,UL
    Price : $1800~2600usd/unit
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000 units per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    1300x850mm Warehouse Stationary Lift Table With Tilt Cargo Lifting

    Cargo Lift Electric Warehouse Stationary Lift Tables with Tilt Table


    Safety Features:

    • Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
    • Low-tention(24V) control box with up-down buttons.
    • Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
    • Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

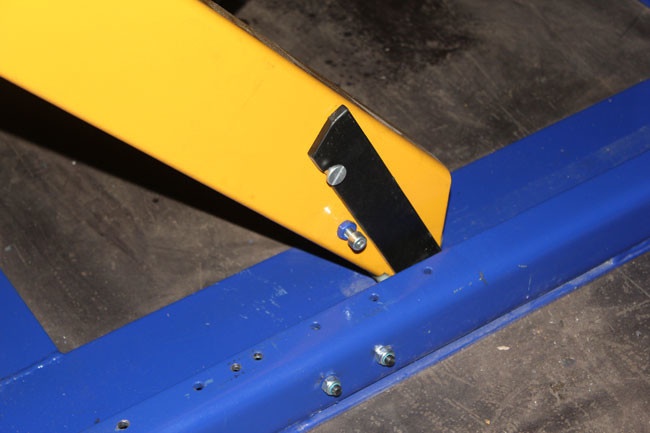

    • Safety clearance between scissors to prevent trapping during operation.

    Specifications:


    ModelCapacityMin./Max. heightTable size (L X W)Base size (L X W)Lifting timeVoltageNet weight
    (Kg)(mm)(mm)(mm)(s)(Kg)
    HW10011000205/9901300×8201240×78720-25380V/50Hz160
    HW10021000205/9901600×10001240×78720-25380V/50Hz186
    HW10031000240/13001700×8501615×78730-35380V/50Hz200
    HW10041000240/13001700×10001615×78730-35380V/50Hz210
    HW10051000240/13002000×8501615×78730-35380V/50Hz212
    HW10061000240/13002000×10001615×78730-35380V/50Hz223
    HW10071000240/13001700×15001615×140430-40380V/50Hz365
    HW10081000240/13002000×17001615×140430-40380V/50Hz365
    HW20012000230/10001300×8501220×78520-25380V/50Hz235
    HW20022000230/10001600×10001220×78520-25380V/50Hz268
    HW20032000250/13001700×8501615×78525-35380V/50Hz289
    HW20042000250/13001700×10001615×78525-35380V/50Hz300
    HW20052000250/13002000×8501615×78525-35380V/50Hz300
    HW20062000250/13002000×10001615×78525-35380V/50Hz315
    HW20072000250/14001700×15001615×140425-25380V/50Hz160
    HW20082000250/14002000×18001615×140425-25380V/50Hz160
    HW40014000240/10501700×12001600×90030-40380V/50Hz375
    HW40024000240/10502000×12001600×90030-40380V/50Hz405
    HW40034000300/14002000×10002000×90030-40380V/50Hz470
    HW40044000300/14002000×12002000×90035-40380V/50Hz490
    HW40054000300/14002200×10002000×90035-40380V/50Hz480
    HW40064000300/14002200×12002000×90035-40380V/50Hz505
    HW40074000350/13001700×15001620×140035-40380V/50Hz460
    HW40084000350/13002200×18001620×140035-40380V/50Hz655

    1300x850mm Warehouse Stationary Lift Table With Tilt Cargo Lifting1300x850mm Warehouse Stationary Lift Table With Tilt Cargo Lifting1300x850mm Warehouse Stationary Lift Table With Tilt Cargo Lifting


    Package:


    1300x850mm Warehouse Stationary Lift Table With Tilt Cargo Lifting


    FAQ:

    Q: What about the quality of the products?
    A: Our products are CE approved, and we have five inspection steps before shipment:
    1. Inspect the raw material in accordance with ISO9001;
    2. Strict inspection in the whole production process;
    3. Load limit test when assembling finished;
    4. 100% strict inspection of products before shipment;
    5. If needed, inspection by buyer.

    Q: How long is the quality guarantee?
    A: All of our products carry one-year warranty.

    Q: What's the leadtime?
    A: Normally 30 days.
    If you order more than 5 itmes mixed in one container, it will be 45 days.
    If you order one item in one container, it will be 20 days.
