    Q345B Electric Lift Trucks Powered Walkie Stacker 1500kg

    Ask Lasest Price
    Brand Name : Buytool
    Model Number : CDD15-25
    Certification : CE,SGS,ISO9001
    Price : USD4183-4500/UNIT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 UNITS/PER MONTH
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

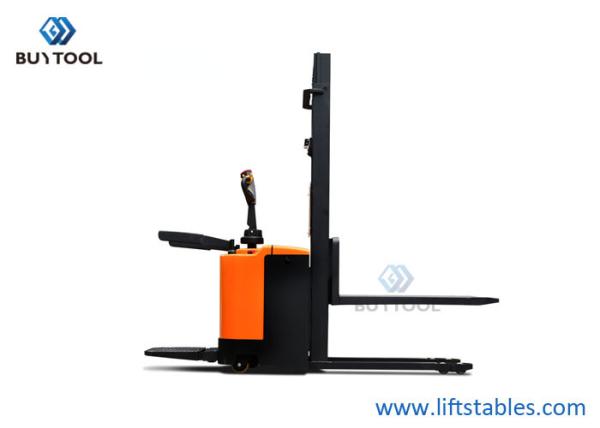

    Q345B Electric Lift Trucks Powered Walkie Stacker 1500kg

    Ergonomic Electric Lift Trucks Electric Stacker 1500kg


    Features:


    Electric pallet stacker

    Loading capacity 1000~2000 Kg

    Lift height 1600~5500 mm


    This is an electric stacker driven by a 24V DC motor. The drive motor is durable and literally free of maintenance. Riding on a stand-on pedestal, the pallet stacker is comfortable and easy to maneuver. We also accept customized model, just call us at +86-15852735173 for your customize


    Specifications:


    NameFull Electric Pallet Stacker(24V)
    Model No.UnitCDD10-25CDD10-30CDD15-16CDD15-25CDD15-30CDD20-25CDD 20-30
    Load CapacityKg1000100015001500150020002000
    Lift heightH(mm)2500300016002500300025003000
    Load centerC(mm)500500500500500500500
    Wheel typePolyurethane solid tire
    Pedal lengthmm470470470470470470470
    Fork dimensionmm1150*190*60
    Ground clearancemm85858585858585
    Width between fork armsmm560/680560/680560/680560/680560/680560/680560/680
    Overall length (pedal closed)L(mm)2120212021202120212021202120
    Overall widthS(mm)850850850850850850850
    Lowered mast heightH1(mm)1830208020801830208018302080
    Extended mast heightH2(mm)3038353720803037353730383537
    Turning radius (pedal fold)Wa(mm)1790179017901790179017901790
    The distance from front wheel to fork endmm343343343343343343343
    Min. stacking aisle width 1000*1000 palletmm2550255025502550255025502550
    Max.Walking SpeedKm/h4.0/5.84.0/5.8
    Grade ability%6666666
    Total weightKg107510959951095111511151135
    Driving wheelmmØ230*75
    Front wheelmmØ80*70
    Balance wheelmmØ125*50
    wheelbasemm1472
    Battery capacityV/Ah24/210
    Charger-IntelligentV/A24/30
    Driving motorKw1.51.51.51.51.51.51.5
    Lifting motorKw2.22.22.22.22.22.22.2

    Q345B Electric Lift Trucks Powered Walkie Stacker 1500kgQ345B Electric Lift Trucks Powered Walkie Stacker 1500kgQ345B Electric Lift Trucks Powered Walkie Stacker 1500kgQ345B Electric Lift Trucks Powered Walkie Stacker 1500kg


    FAQ:

    Q: What about the quality of the products?
    A: Our lift tables are CE approved, and we have five inspection steps before shipment:
    1. Inspect the raw material in accordance with ISO9001;
    2. Strict inspection in the whole production process;
    3. Load limit test when assembling finished;
    4. 100% strict inspection of lift tables before shipment;
    5. If needed, inspection by buyer.


    Q: Do you accept customized design? Do you offer OEM & ODM service?
    A: Yes,of course! We have over 10 years' experience in customized design product. Just call us at: +86-15852735173 (Lily) for your customized solution!


    Q: What information should I provide for a customized order?
    A: The more information you provide, the accurate solution we can prepare for you.Such as:
    1.control by manual or electric
    2.stationary or mobile lift tables
    3.power source/voltage demand
    4.load capacity
    5.lifting heigh(min.height and max height)
    6.table size


    Q: What is your MOQ?
    A: One unit.The more the better.The price is negotiable for large quantity.


    Q: How long is the quality guarantee?
    A: All of our products carry one-year warranty.

    Q: What's the leadtime?
    A: Normally 30 days.
    If you order more than 5 itmes mixed in one container, it will be 45 days.
    If you order one item in one container, it will be 20 days.
