    Electric Three Way Stacker Forklift 1500kg 6000mm Lifting Height

    Ask Lasest Price
    Brand Name : Buytool
    Model Number : CDDM15-60S
    Certification : CE,SGS,ISO9001
    Price : USD35833-39000/UNIT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 UNITS/PER MONTH
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

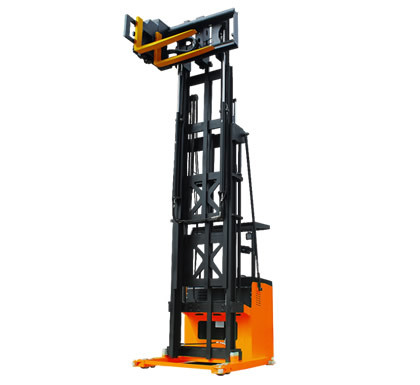

    Electric Three Way Stacker Forklift 1500kg 6000mm Lifting Height

    Electric Three Way Stacker Forklift 1500kg 6000mm Lifting Height


    Description:


    This forklift has a high throughput rate in particularly for very narrow aisle,so it is the proper solution for optimizing pallet storage.Operating in very narrow aisle,CDDM series can increase the warehouse density as well as the ability of handling high volumes quickly and safely.


    Specifications:


    Character1.1ModelCDDM10-60SCDDM15-60S
    1.2Power typeElectricElectric
    1.3Operate typestanding typestanding type
    1.4Load capacityQ(t)10001500
    1.5Load centerC(mm)500500
    Weight2.1Self weight (including battery)kg4800>5000
    Wheel/3.1Wheel typePolyurethanePolyurethane
    Chassis3.2Front wheel size×w(mm)Ф145*100Ф145*100
    3.2Drive wheel size×w(mm)Ф382*142Ф382*142
    3.4Balancing wheel size×w(mm)Ф180*76Ф180*76
    3.5Track width (front wheel)b10(mm)12101315
    Dimension4.1Height-mast closedh1(mm)31803180
    4.2Height-free lifth2(mm)19801980
    4.3Lift heighth3(mm)60006000
    4.4Height of mast open(incl. Load-Backrest)h4(mm)71007100
    4.5Overguard heighth14(mm)22802280
    4.6Overall length(with fork)l2(mm)3780/28503980/3100
    4.7Overall widthb1(mm)14451550
    4.8Width of anti-collision guard rail(mm)15001600
    4.9Fork sizes/e/l(mm)1070*122*401070*125*45
    4.10Fork Adjustable rangeb5(mm)260-600260-650(可定制)
    4.11Min ground clearance (wheelbase center)m2(mm)3232
    4.12Aisle width for pallet 1000*1000 crosswayAst(mm)15001600
    4.13Height of guide rail(mm)120120
    4.14Min turning radiusWa(mm)20172017
    Performance5.1Driving speed(load/unload)km/h8/78/7
    5.2Lifting speed(load/unload)m/s0.275/0.2150.275/0.215
    5.3Lowering speed(load/unload)m/s0.150/0.1950.150/0.195
    5.4Service ParkingElectromagneticElectromagnetic
    Motor6.1Drive motorkw6.5 AC6.5 AC
    6.2Lift motorkw7.5 DC8.6 AC
    6.3Battery typeLead acidLead acid
    6.4Battery V/AHV/Ah48V/400Ah48V/400Ah
    Others8.1Drive motor typeACAC

    Pictures:

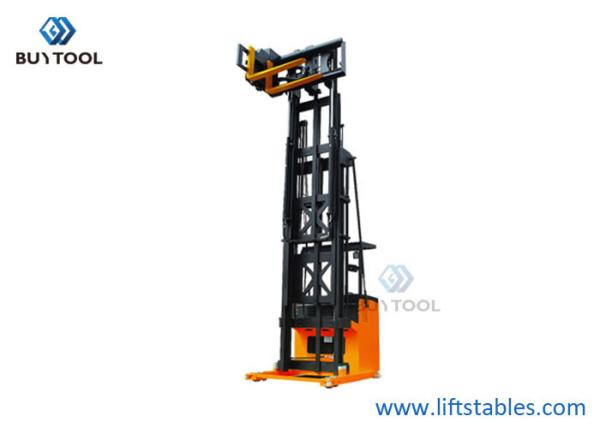

    Electric Three Way Stacker Forklift 1500kg 6000mm Lifting Height


    FAQ:

    Q: What about the quality of the products?
    A: Our lift tables are CE approved, and we have five inspection steps before shipment:
    1. Inspect the raw material in accordance with ISO9001;
    2. Strict inspection in the whole production process;
    3. Load limit test when assembling finished;
    4. 100% strict inspection of lift tables before shipment;
    5. If needed, inspection by buyer.


    Q: Do you accept customized design? Do you offer OEM & ODM service?
    A: Yes,of course! We have over 10 years' experience in customized design product. Just call us at: +86-15852735173 (Lily) for your customized solution!


    Q: What information should I provide for a customized order?
    A: The more information you provide, the accurate solution we can prepare for you.Such as:
    1.control by manual or electric
    2.stationary or mobile lift tables
    3.power source/voltage demand
    4.load capacity
    5.lifting heigh(min.height and max height)
    6.table size


    Q: What is your MOQ?
    A: One unit.The more the better.The price is negotiable for large quantity.


    Q: How long is the quality guarantee?
    A: All of our products carry one-year warranty.

    Q: What's the leadtime?
    A: Normally 30 days.
    If you order more than 5 itmes mixed in one container, it will be 45 days.
    If you order one item in one container, it will be 20 days.
