    520x1260mm Mobile Manual Lift Table 2000 Lbs 500kg Maximum Height 1600mm

    Ask Lasest Price
    Brand Name : Buytool
    Model Number : BS50D
    Certification : CE,SGS,ISO9001
    Price : USD300-390/UNIT
    Payment Terms : L/C, T/T, D/P, D/A, Western Union
    Supply Ability : 1500 UNITS/PER MONTH
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    520x1260mm Mobile Manual Lift Table 2000 Lbs 500kg Maximum Height 1600mm

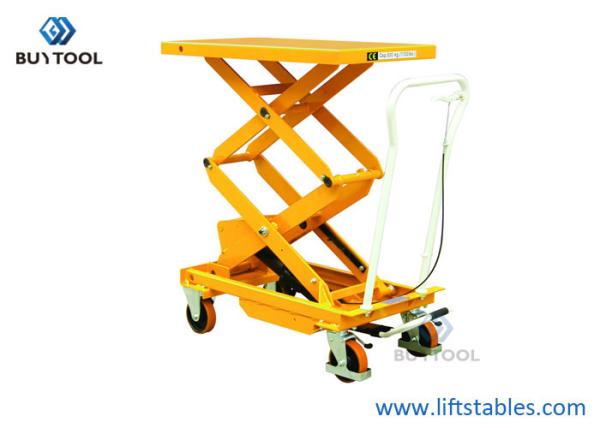

    Hydraulic Scissor Lift Table with Capacity 500kg Maximum Height 1600mm


    Features:

    • Ideal design for lifting and transporting goods;
    • widely used for workbench and assembly line operation;
    • Welded steel frame with durable coat finish;
    • Durable hydraulic pump ensures a long service life.

    Description:


    BS series hydraulic scissor lift table has heavy duty range, new design to meet EN1570:1999. Capacity from 150 to 800kg with different lifting height to meet different work requirements.


    Specifications:


    ModelCapacityTable SizeTable HeightHandle HeightWheel Dia.Overall SizeFoot PedaNet Weight
    (kg)LxW (mm)H (Min./Max.)(mm)h (mm)(mm)BxC (mm)(kg)
    BS15150700x450265/7551000Φ100450x9502041
    BS25250830x500330/9101100Φ125500x10102878
    BS505001010x520435/10001130Φ150520x118555118
    BS757501010x520442/10001130Φ150520x126065120
    BS10010001010x520445/9501130Φ150520x126085137
    BS15D150830x500435/14301100Φ125500x10103090
    BS30D3001010x520435/15851130Φ150520x126075150
    BS50D5001010x520440/15751130Φ150520x126085168
    BS80D8001010x520470/14101130Φ150520x126095165

    520x1260mm Mobile Manual Lift Table 2000 Lbs 500kg Maximum Height 1600mm


    This lift table can add safety protection cover:


    520x1260mm Mobile Manual Lift Table 2000 Lbs 500kg Maximum Height 1600mm


    Turnable Roller tops for option:

    520x1260mm Mobile Manual Lift Table 2000 Lbs 500kg Maximum Height 1600mm


    FAQ:

    Q: What about the quality of the products?
    A: Our lift tables are CE approved, and we have five inspection steps before shipment:
    1. Inspect the raw material in accordance with ISO9001;
    2. Strict inspection in the whole production process;
    3. Load limit test when assembling finished;
    4. 100% strict inspection of lift tables before shipment;
    5. If needed, inspection by buyer.


    Q: Do you accept customized design? Do you offer OEM & ODM service?
    A: Yes,of course! We have over 10 years' experience in customized design product,expecially lift tables.


    Q: What information should I provide for a customized order?
    A: The more information you provide, the accurate solution we can prepare for you.Such as:
    1.control by manual or electric
    2.stationary or mobile lift tables
    3.power source/voltage demand
    4.load capacity
    5.lifting heigh(min.height and max height)
    6.table size


    Q: What is your MOQ?
    A: One unit.The more the better.The price is negotiable for large quantity.


    Q: How long is the quality guarantee?
    A: All of our products carry one-year warranty.

    Q: What's the leadtime?
    A: Normally 30 days.
    If you order more than 5 itmes mixed in one container, it will be 45 days.
    If you order one item in one container, it will be 20 days.

    Quality 520x1260mm Mobile Manual Lift Table 2000 Lbs 500kg Maximum Height 1600mm for sale
