Q345B Stationary Lift Table For Manufacturing Industries Platform With Protective Cover

Wuxi Buytool Industrial Equipment Co., Ltd.
Contact Now
    Buy cheap Q345B Stationary Lift Table For Manufacturing Industries Platform With Protective Cover from wholesalers

    Buy cheap Q345B Stationary Lift Table For Manufacturing Industries Platform With Protective Cover from wholesalers
    • Buy cheap Q345B Stationary Lift Table For Manufacturing Industries Platform With Protective Cover from wholesalers
    • Buy cheap Q345B Stationary Lift Table For Manufacturing Industries Platform With Protective Cover from wholesalers
    • Buy cheap Q345B Stationary Lift Table For Manufacturing Industries Platform With Protective Cover from wholesalers
    • Buy cheap Q345B Stationary Lift Table For Manufacturing Industries Platform With Protective Cover from wholesalers

    Q345B Stationary Lift Table For Manufacturing Industries Platform With Protective Cover

    Ask Lasest Price
    Brand Name : Buytool
    Model Number : HW1001
    Certification : CE,SGS,ISO9001
    Price : USD800-1100/UNIT
    Payment Terms : T/T, Western Union, L/C,
    Supply Ability : 1000 UNITS/PER MONTH
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    Q345B Stationary Lift Table For Manufacturing Industries Platform With Protective Cover

    Manufacturing Maintenance Industries Use Stationary Lift Table with Protective Cover


    Features:

    • Loading capacity 2200 lbs
    • Table dimension 51.2"x32.3"
    • Lowered height 8.1"
    • Raised height 39"
    • With protective cover bellow.
    • Customs' special requirements are acceptable.
    • HW series lift tables meet EN norm and ANSI/ASME safety standards.
    • These models can be used in above-floor or in-floor pit applications.

    Description:


    Widely used in manufacturing and maintenance industries.

    Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
    Low-tention(24V) control box with up-down buttons.
    Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
    Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
    Safety clearance between scissors to prevent trapping during operation.

    For customized models, please contact us for your special needs!


    Specifications:

    ModelHW1001HW1002HW1003HW1004HW1005HW1006HW1007HW1008
    Capacitykg(lb.)1000(2200)
    Lowered heightmm(in.)205(8.1)240(9.4)
    Raised Heightmm(in.)990(39)1300(51.1)
    Platform Sizemm(in.)820*13001000*1600850*17001000*1700850*20001000*20001700*15002000*1700
    (32.3*51.2)(40*63)(33.5*67)(40*67)(33.5*80)(40*80)(67*60)(80*67)
    Base frame sizemm(in.)680*1266(26.8*49.8)680*1600(26.8*63)1600*1360(63*53.6)
    Lift Times20-2530-3530-40
    Power Pack380V/50Hz, AC1.1kw
    Net Weightkg(lb.)160(352)186(409.2)200(440)210(462)212(466.4)223(490.6)365(803)430(946)

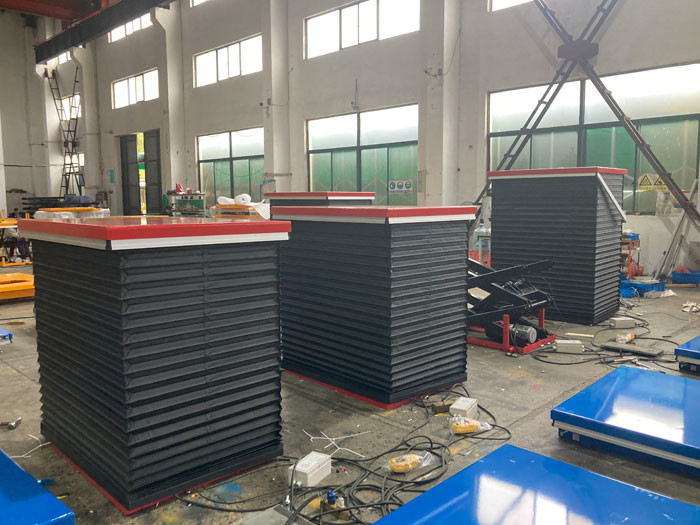

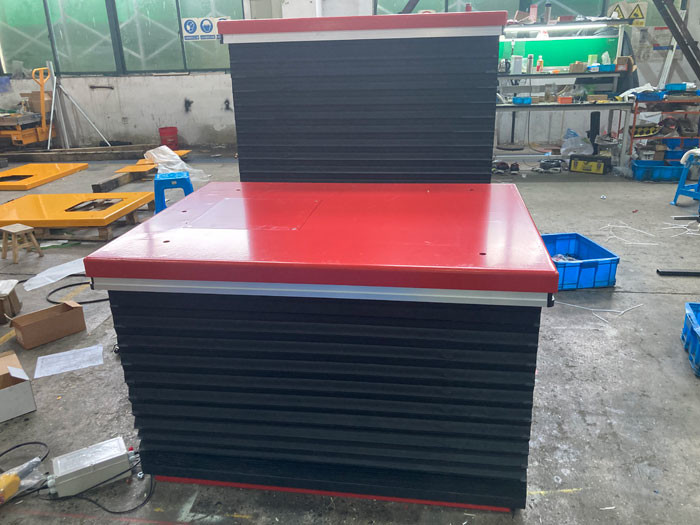

    Pictures:

    Q345B Stationary Lift Table For Manufacturing Industries Platform With Protective CoverQ345B Stationary Lift Table For Manufacturing Industries Platform With Protective Cover


    FAQ:

    Q: What about the quality of the products?
    A: Our lift tables are CE approved, and we have five inspection steps before shipment:
    1. Inspect the raw material in accordance with ISO9001;
    2. Strict inspection in the whole production process;
    3. Load limit test when assembling finished;
    4. 100% strict inspection of lift tables before shipment;
    5. If needed, inspection by buyer.


    Q: Do you accept customized design? Do you offer OEM & ODM service?
    A: Yes,of course! We have over 10 years' experience in customized design product,expecially lift tables.

    Contact us for your special needs:

    Email: sales@buy-tool.com

    Mobile/Whatsapp: +86-15852735173


    Q: What information should I provide for a customized order?
    A: The more information you provide, the accurate solution we can prepare for you.Such as:
    1.control by manual or electric
    2.stationary or mobile lift tables
    3.power source/voltage demand
    4.load capacity
    5.lifting heigh(min.height and max height)
    6.table size


    Q: What is your MOQ?
    A: One unit.The more the better.The price is negotiable for large quantity.


    Q: How long is the quality guarantee?
    A: All of our products carry one-year warranty.

    Q: What's the leadtime?
    A: Normally 30 days.
    If you order more than 5 itmes mixed in one container, it will be 45 days.
    If you order one item in one container, it will be 20 days.
