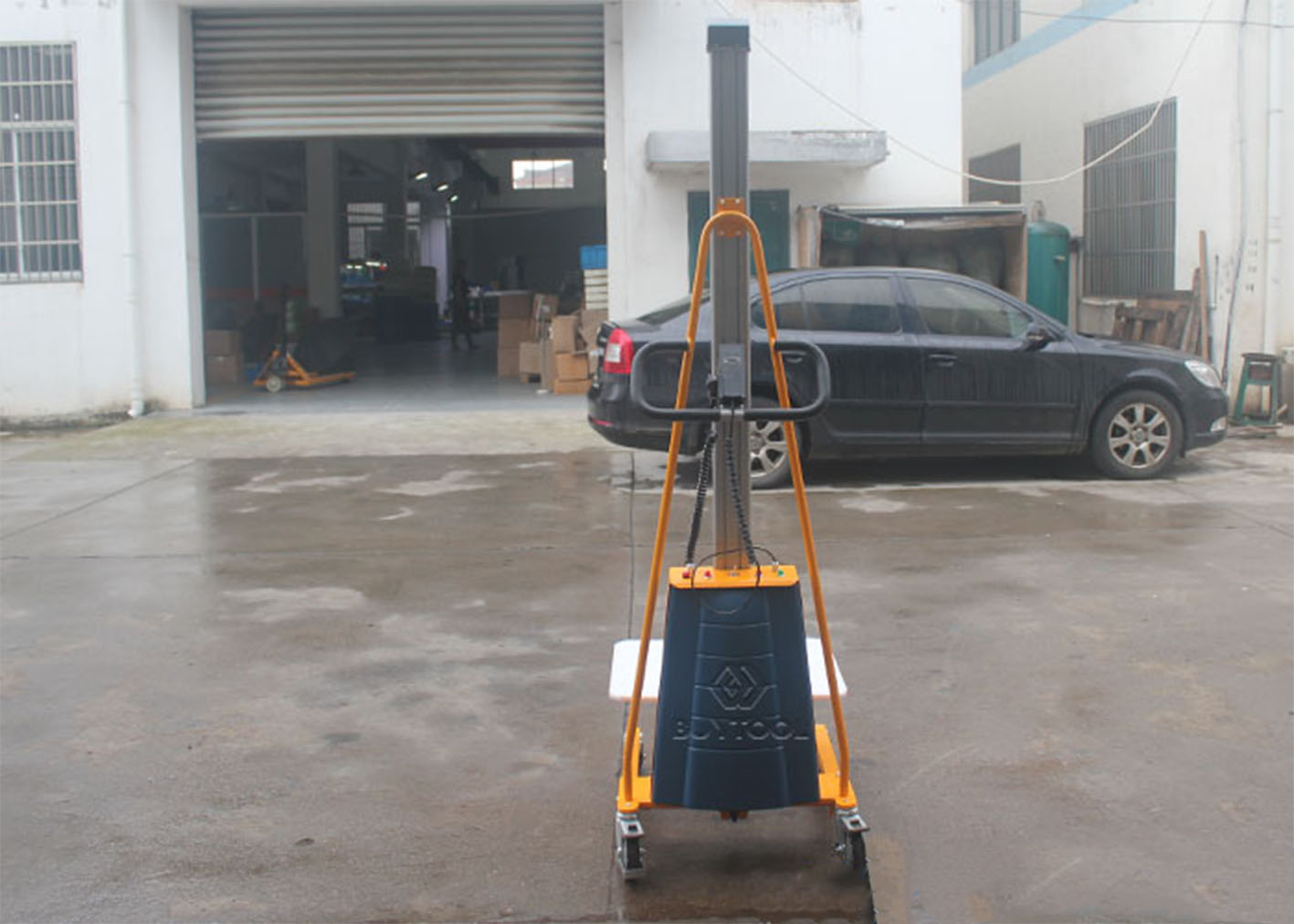

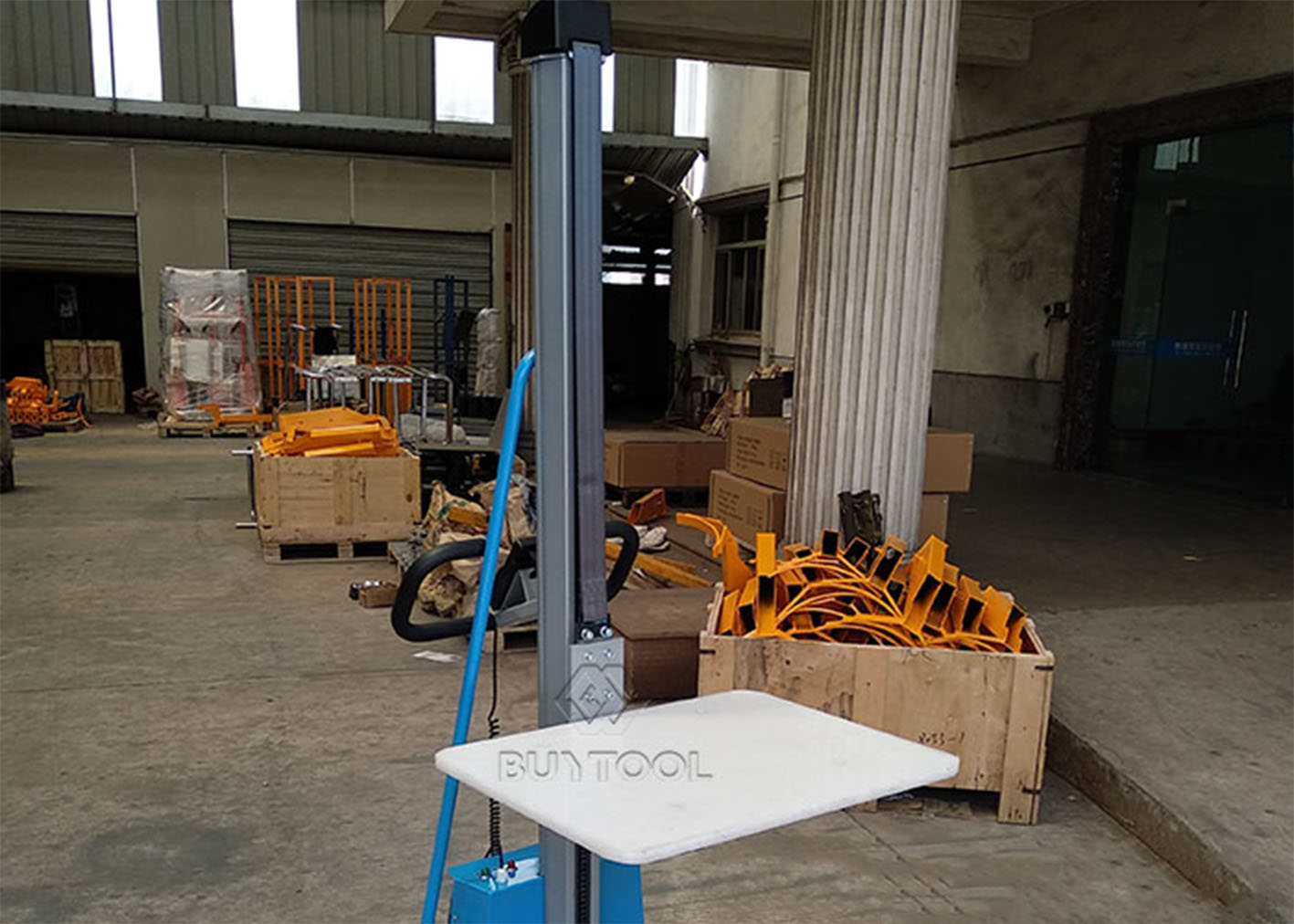

E100 Electric Hydraulic Stacker Lift Equipment Work Postioners
The Electric stacker truck has models E100R, E150R, E100HR, E200R,
and the work positioners is also with weight scales like model
E100, E100H, E150, E200
▲ All these optional standard accessories are available in various
special versions.
▲ E type is also available in an AISI 304 stainless steel version
for use in sterilised areas or food sectors.
▲Powerful motor, battery 12Ah &20Ah. A range of highly
maneuverable, lightweight lifts, designed to take the strain out of
any lifting job ground level to over shoulder height.
▲Ideal for use in narrow aisles and confined spaces. Perfect for
all applications from pharmaceutical to catering, from packing line
to food processing, from warehouse to office, kitchens,
laboratories, retail outlets and son on...
▲Weighing system is also opptional.
▲E series automatic electronic overload protection system ensures
safety. maintance free and sealed batteries, automatic charger.
| Model | | E100 | E100H | E150 | E200 |
| Capacity | (Kg) | 100 | 100 | 150 | 200 |
| Load center | (mm) | 230 |
| Max. fork height | (mm) | 1700 | 2000 | 1500 | 1500 |
| Min. fork height | (mm) | 130 |
| Platform size (length x width) | (mm) | 470×600(PE) |
| Front wheel (PU) | (mm) | Φ75 |
| Rear wheel (PU) | (mm) | Φ125(PU) |
| Battery | (V/Ah) | 24V/12Ah |
| Net weight | (Kg) | 62 | 68 | 65 | 78 |
FAQ:
What the mainly currency Buytool can accept?
Prices are quoted mostly in US dollars or EURO. All prices are
subject to change without notice.
Can you introduce the shipment of Buytool?
Shipping charges for all Buytool orders are calculated based on the
shipping method of the order, the weight or volume of the items on
the order, and the destination.We normally can do
FOB/CIF/DAP/DDP/DDU terms and also we can send the goods via
express or AIR according customer’s requirements. All wooden
packages can be fumigated at our side and we will provide the
official certification if your Customers need.
CIF TERM: Buytool will arrange the shipping company and will be in charge to
assure the goods shipped to destination port. You will not need to
pay the shipping company upon delivery to destination port.
FOB TERM: If you would like your preferred shipping company to pick up your
order, simply let us know when you place your order. You will be
responsible for paying your shipping company sea freight charges
besides your order. Buytool only in charge of sending the goods to
loading port as agree on order.
What about the delivery time?
Most of items can be shipped out within 30days, some items need a
little bit longer time to prepare, we will explain these to you if
this situation happens.
What’s the payment term of Buytool?
Buytool accepts L/C at sight or T/T, anyway we prefer T/T mainly
because it will save money for both parties, Your first order with
Buytool must be prepaid with T/T, after first time, we accept the
payment as we ship out goods, then fax the copy of documents to
you, you balance the rest payment ,and we will express the original
documents to you after we get the money. Any other info please
contact us for detail.
