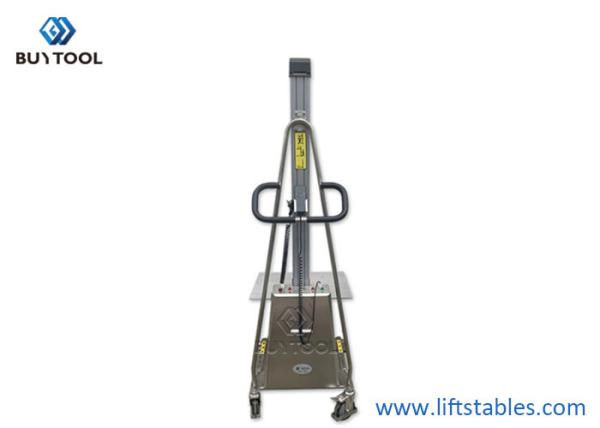

304 Stainless Steel Electric Hydraulic Lifting Stacker Work
Positioner
1. Compact design and mini exterior beautiful provide a convenient
operation;
2. With a safety device to prevent a fast falling due to the
mechanical trouble, safe and reliable;
3. Maintenance free battery, Electric power digital display meter
and Low-voltage alarm lamp;
4. In accordance with EN1757 European standards.
Ideal for use in narrow aisles and confined space.
Quick change attachment options available.
Stronger motor, Larger battery 12Ah, Low voltage protection.
A range of highly manoeuvrable. Lightweight lifts, designed to take
the strain out of any lifting job from ground level to over
shoulder height.
Perfect for all applications from pharmaceutical to catering, from
packing line to food processing, from warehouse to office,
kitchens, laboratories, retail outless, etc...
Auto brake system prevents uncontrolled lowering.
Automatic electronic overload protection sytem ensures sfety.
Maintenance free and sealed batteries, automatic charger.
| Model (Fixed fork type) | E100S SUS304 stacker | E150S SUS304 stacker |
| Drive Type | / | Electric | Electric |
| Capacity | kg | 100 | 150 |
| Load Center | mm | 250 | 250 |
| Min. Platform Height | mm | 130 | 130 |
| Max. Platform Height | mm | 1700 | 1500 |
| Platform Size (L*W) | mm | 600*470 | 600*470 |
| Front Wheel (PU) | mm | Ø 75*30 | Ø75*30 |
| Rear Wheel (PU) | mm | Ø 125*40 | Ø125*40 |
| Pump Station Power | kw | 0.8 | 0.8 |
| Battery | Ah/V | 12月24日 | 12月24日 |
| Min. steering radius | mm | 900 | 900 |
| Overall Size (L*W*H) | mm | 870*600*1990 | 870*600*1790 |
| Net Weight | kg | 66 | 63 |
